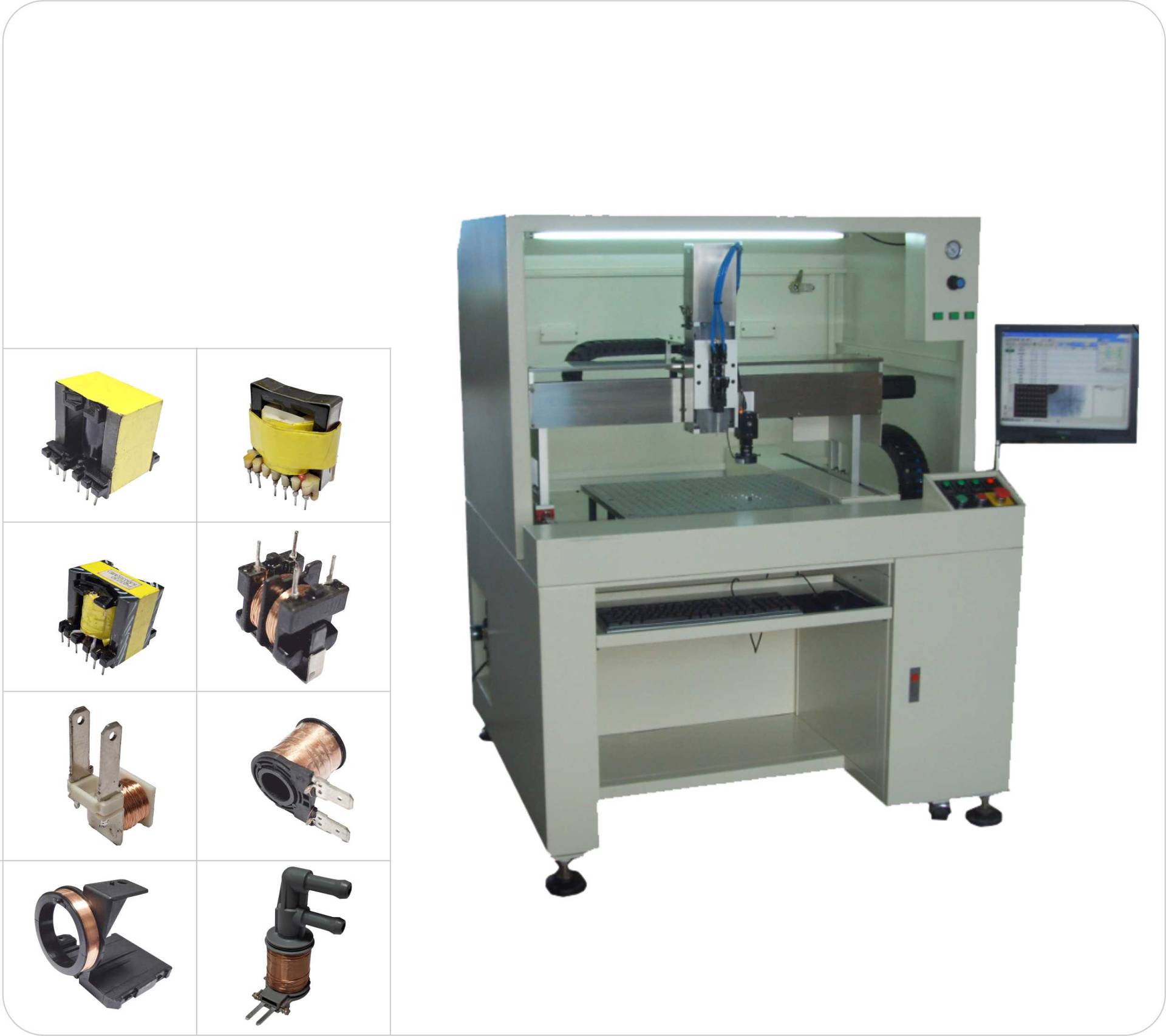

Auto AB Glue Dispensing Machine

PME-R600A

* A variety of dispensing can be fulfilled.

* Adopted Gear pump (screw) automatic matching

* Plastic pistol and working area with heating system:

* AB pressure plastic barrel, AB dual liquid glue pistol

* Use Windows2000/XP Operating System

* Interpolate lines or acres for three dimensional dispensing that accurate continuous path motion.

* Large data storage capacity. Software with functions of lines, area, lens setting

* Adopted with "Panasonic" servo motor for XYZ motion control, deliver a precise and stable speedy motion dispensing

* Volume, Size, Speed, Times, Waiting times can be numerically set. Precisely dispense without leaking

* Employs a CCD camera which allows to view and precise position the dispenser route, provides tracking route, production counting Save times in adjusting work & increase productivity

Specification
Product Videos
Product Accessories

Product Specifications

Model #	PME-R600A
Dispensing Range	(X) 600 x (Y) 500 (Z) 80 mm
Max. Speed	500mm / sec
Precision	+/- 0.015mm
Repeatability	+/- 0.015mm
Operation System	Windows2000 XP
Drive System	Panasonic Servo Motor / Needle bearing
Operating Software	Self-developed dispensing software (CCD software)
Electric Source	Ac 220V 50/60Hz ; 1.5KW
Unit Dimension	1180(L) x 1150(W) x 800(H) mm
Unit Weight	500 kg
Optional Device	1. MARKER with auto-positioning & adjusting function 2. Multi-dispensing needles, Go with a variety of glue pistol and plastic barrel connection
