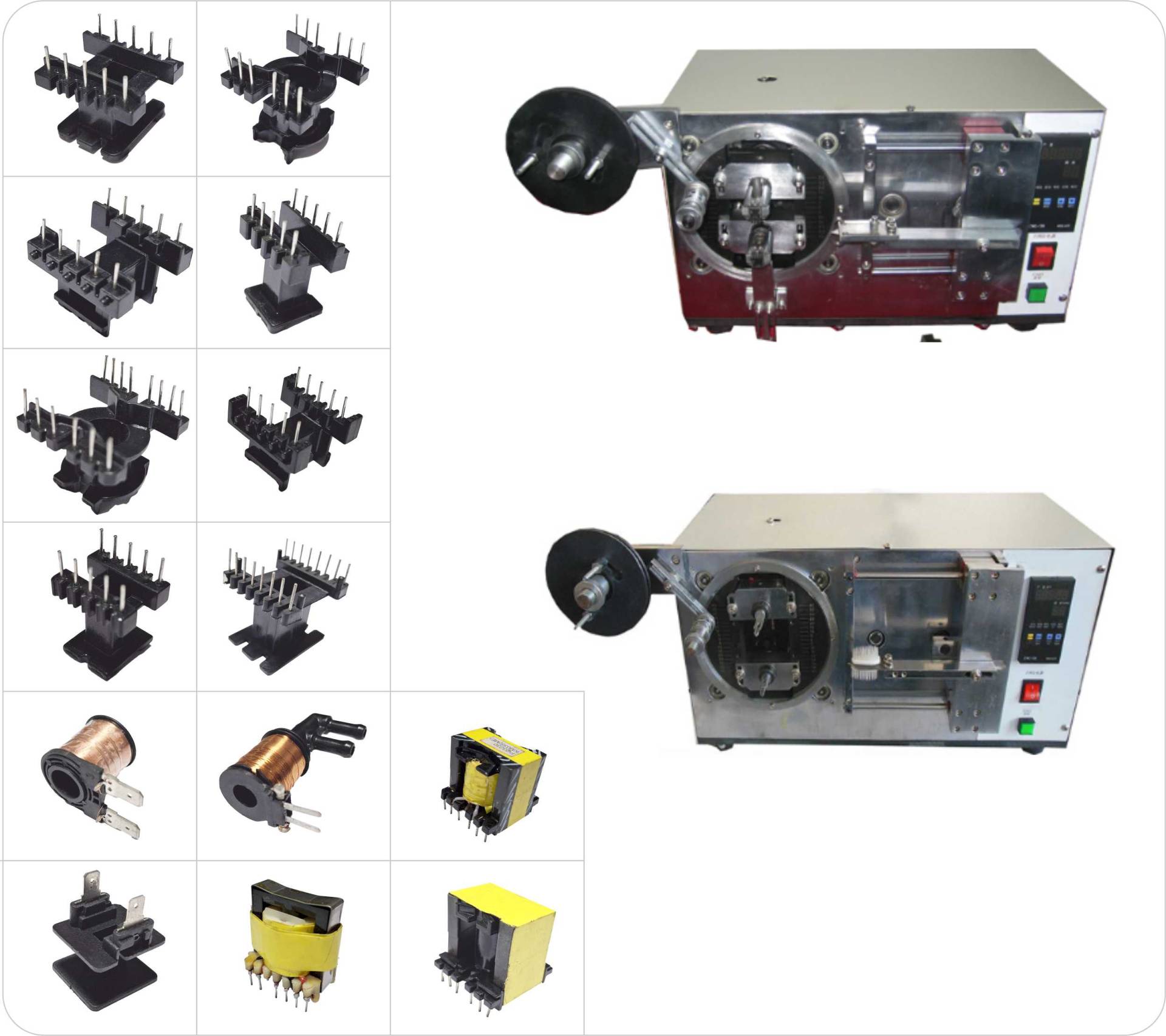

Auto Coil/Core Taping Machine

PME-1648

* Suitable for tape's inner hole between 34mm and 77mm.
* Applied transformer size ranges are WCE-1648: EE10~35; WCE-1648A: EE25~48; WCE-1648B: EI 35~66
* It's also suitable for ferrite-tapping applications.
* Two spindles rotating taping type, pitch can be adjusted from 25mm to 85mm.
* Taping position can be adjusted as well as tension force, number of turns etc.
* Change simple mold for different components.

  • Specification
  • Product Videos
  • Product Accessories

Product Specifications


Model # PME-1048
Cycle Time 1Pc / 2Sec
Electric Source AC 220V 50/60Hz
Unit Dimension 250(L) x 550(W) x 300(H) mm
Unit Weight 45 kg
