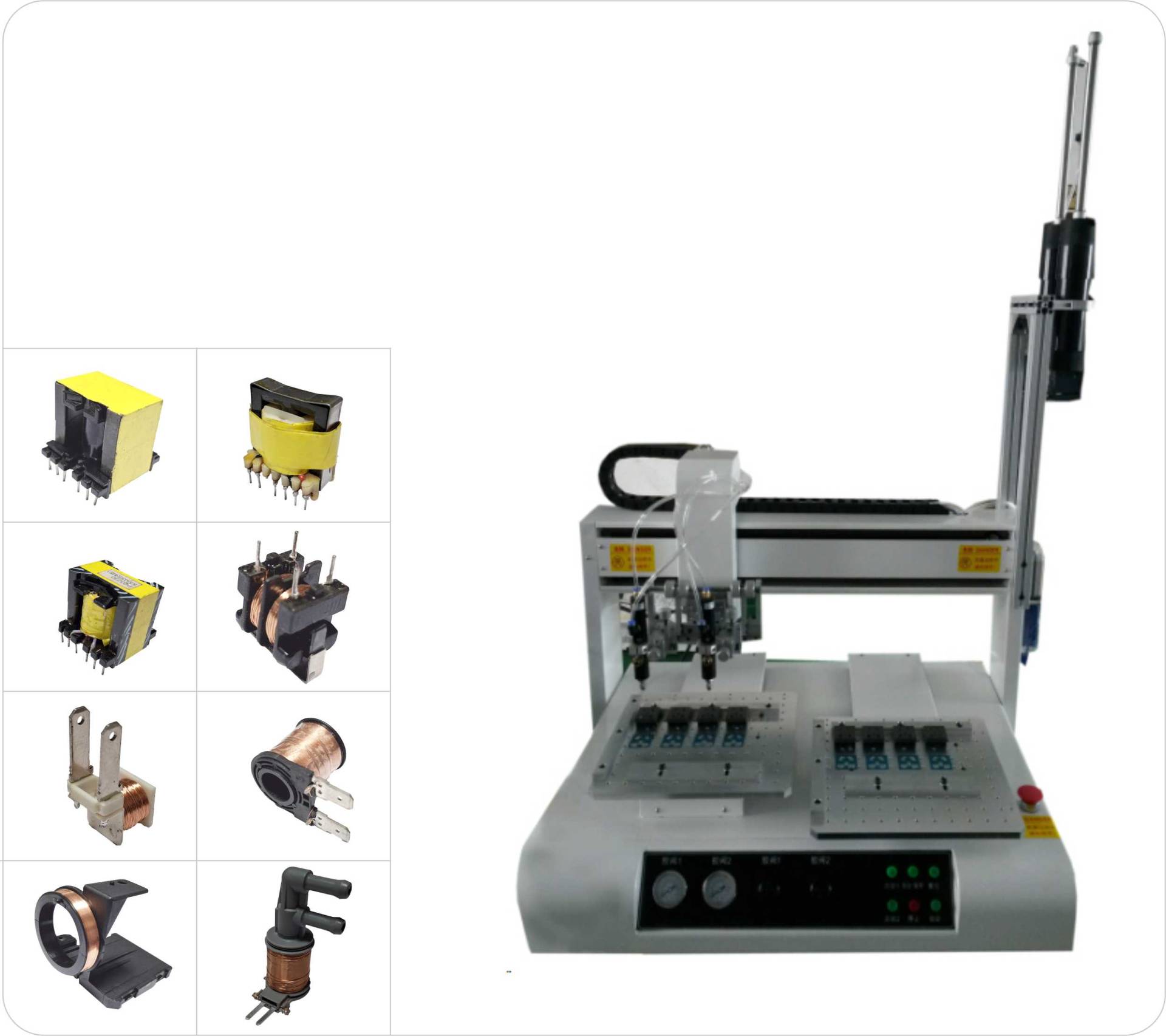

Auto Liquid Dispensing Machine (single/Dual syringe & slide platform type)

PME-R300B 2Y

* The PME-R300B2Y is ideal for single or dual-component gasket, potting, or dot placement processes. With dual-headed Syringe guns & slide working trays system providing a high level of productivity. No idle while waiting for dispensing in process, operators are free to load and unload tray that being dispensed. It also delivers a closed-loop process that is consistent and reliable Save labor & production cost

* Interpolate lines or acres for three-dimensional dispensing that accurate continuous path motion

* Volume, Size, Speed, Times, Waiting times can be numerically set Precisely dispensed without leaking

* Adopted with a micro-stepping motor for XYZ motor control, deliver a precise and stable speedy motion dispensing.

* A variety of dispensing can be fulfilled.

Specification
Product Videos
Product Accessories

Product Specifications

Model #	PME-R300B2Y
Dispensing Range	(X) 600 x (Y) x 300 x (Z) 80 mm
Max Speed	500mm / sec
Precision	+/- 0.015mm
Repeatability	+/- 0.02mm
Operating System	Hand Held Control Card + Touch Keys editor
Drive System	X, Y1, Y2, & Z use micro stepping motor or imported belt + high precision linear guide way
Single/Twin pistols device	Single/Dual plastic valves & single/dual 330ml silicon syringes
Electric Source	AC 220V 50/60Hz ; 0.75KW
Unit Dimension	850(L) x 640(W) x 660(H) mm
Unit Weight	80 kg
Optional Device	1. Glue pistols, Automatic tray heating system 2. Multi-dispensing needles, goes with a variety of glue pistol and plastic barrel connection
