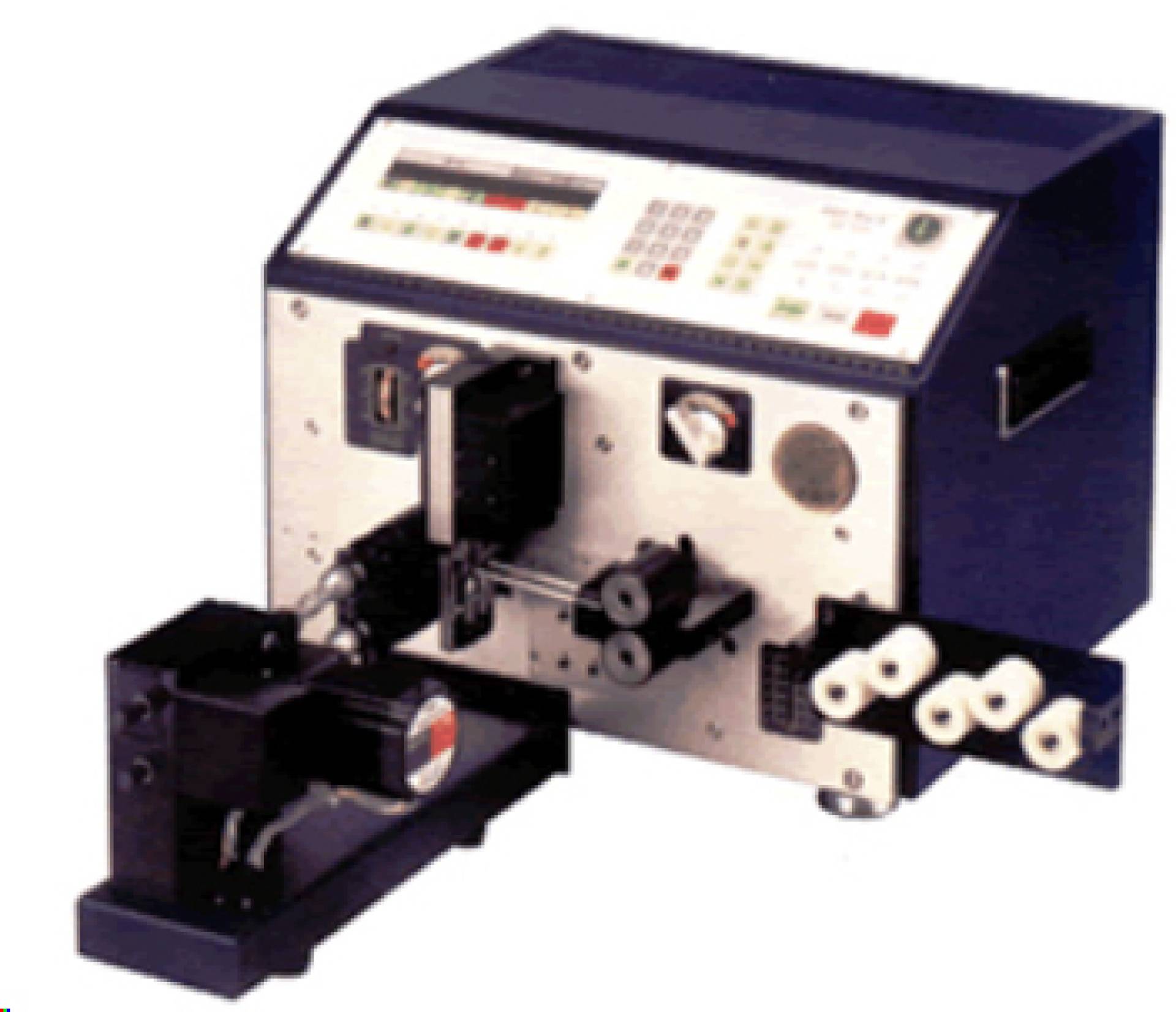

Auto Wire Cut, Strip & Twist Machine

PME-220 / 220T

* Applicable for Electric wire, Teflon, Coaxial cable fiber wire and tube etc. Fully automatic cutting, stripping. half-stripping, middle stripping and twisting functions
* This machine meet the requirements of modern electronic features such as light, short & thin, small and high precision. Even a difficult processing wire1mm to 50mm it can be overcome For example, the length is 1mm both ends strip 0.3mm can be made, even insulation wire can be stripped to a length of 99mm.

  • Specification
  • Product Videos
  • Product Accessories

Product Specifications


Model # PME-220 / 220T
Application Size AWG#14~AWG#32 (Depends on wire material)
Stripping Length 0.1~99.9mm (Depends on wire material)
Cutting Length 0.1~99999.9mm (Depends on wire material)
Cutting Tolerance Adjustable
Electric Source AC 220V 50/60Hz
Unit Dimension 450(L) x 720(W) x 360(H) mm
Unit Weight 39 kg
