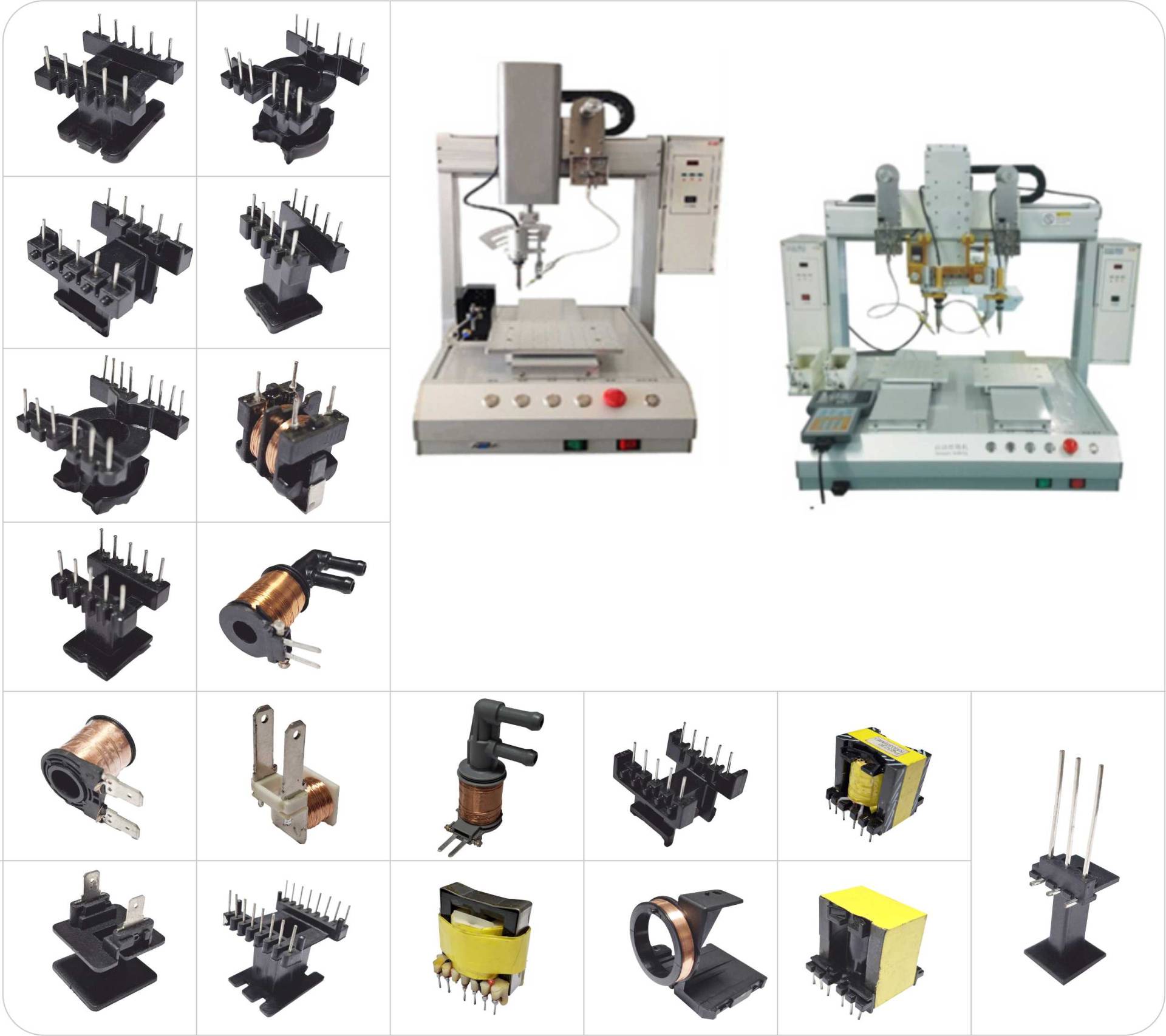

Automatic Spot Welding Machine

PME-T8R1 & T8R2

* XYZ-axis drive and using advanced motion control algorithm can effectively improve the positioning accuracy and repeatability movement ends, The machine is fully controlled by computer, handheld teach-pad directly through digital inputs or reproduction of spot position coordinates Teach..
* Large power heating controller, Precision thermocouple located at the front of the soldering iron. Ensure return temperature in stable continuous solder.
* Sleeve design tip and facilitate quick & easy replacement
* Specializing in the production automation Iron Headmodels
* Style diversification, can quickly solve difficult soldering process.
* Repeatedly send tin system, can make Joints the result is more rapid and perfect
* 99 set program memory and freely adjustable spot welding angle."No tin' buzz alram.

  • Specification
  • Product Videos
  • Product Accessories

Product Specifications


Model # PME-T8R1 PME-T8R2
Working range 260(X) x 300(Y) x 100(Z) mm 720(X) x 300(Y) x 100(Z) mm
Max. Speed 0-500mm/S 0-500mm/S
Precision +/-0.02mm +/-0.02mm
Operating System WINCO Hand Held Control +Touch Key Editor WINCO Hand Held Control +Touch Key Editor
Temperature Control 0oC-450oC 0oC-450oC
Temp. Control Precision +/-2oC +/-2oC
Tin Wire Diameter 0.4/0.5/0.6/0.8/1.0/1.2mm 0.4/0.5/0.6/0.8/1.0/1.2mm
Max. Work Load Weight 10 kg 10 kg
Memory Capacity Up to 99 sets of program file Up to 99 sets of program file
Soldering Tip/Head One or Two One or Two
Drive System Micro Stepping Motor or Belt Micro Stepping Motor or Belt
Tin Wire Position Adjustable Adjustable
Machine Dimension 520(X) x 580(Y) x 750(Z) mm 520(X) x 580(Y) x 750(Z) mm
Machine Weight 50 kg 50 kg
