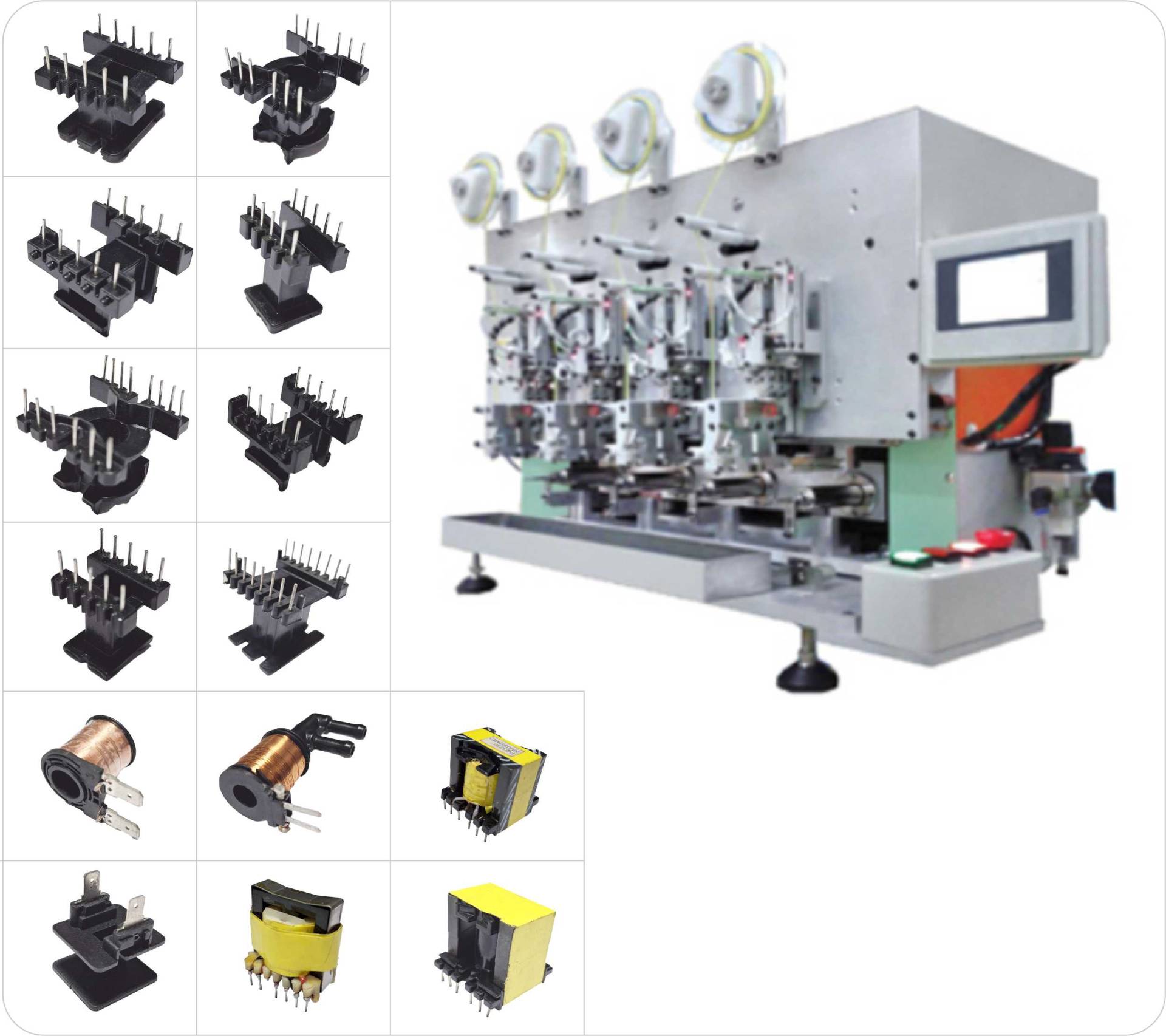

Automatic Taping Machine PLC Control

PME-1804

* Critical & essential parts are adopted with Japan made components. It ensures machine reliability and durability, greatly increasing the life of machine

* Control touch panel, simple and easy for input and setting

* Equipped with Japan precision cylinders for controlling taping tension that delivers product taping quality

* Free setting of spindle angle

* Adopted with Servo Motor in synchronized control

* Pulley-type replacement of adhesive tapes

* Manual loading, auto tape, cut and unload

* Tooling can be changed easily for different models

* Optional device. Automatic loading system

Specification
Product Videos
Product Accessories

Product Specifications

Model #	PME-1804
No. of Spindle	4
Spindle Speed	20,000 rpm
Spindle Pitch	140mm
Spindle Power	400W
Max. Tape Width	45mm
Max. Bobbin Dimension	55mm
Control Mode	PLC
Air Presuure	0.4~0.55 mpa
Power Consumption	400W
Electric Source	AC110/AC200V Single Phase 50/60Hz
Unit Dimension	850(L) x 510(W) x 6500(H) mm
Unit Weight	100 kg
