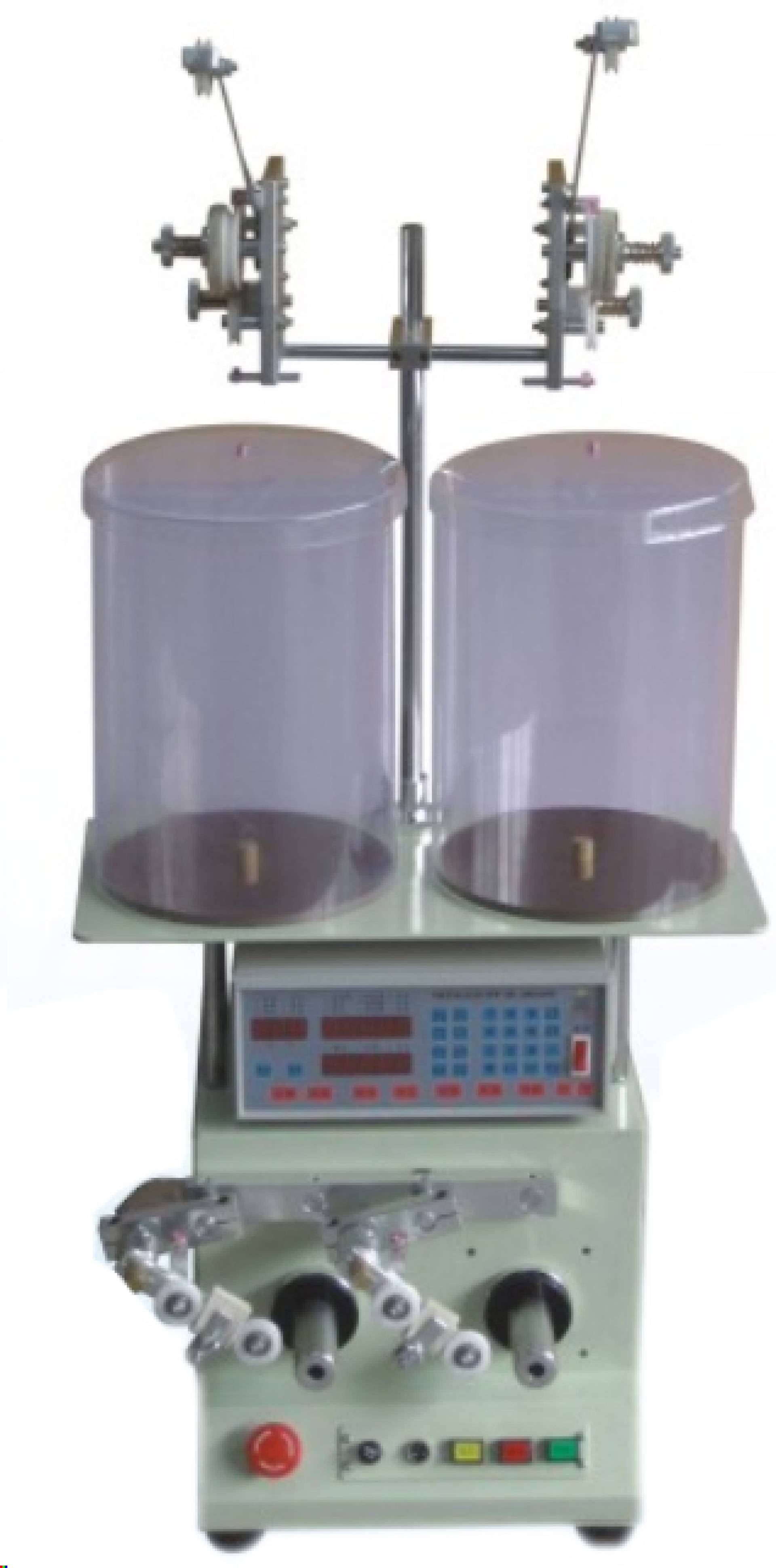

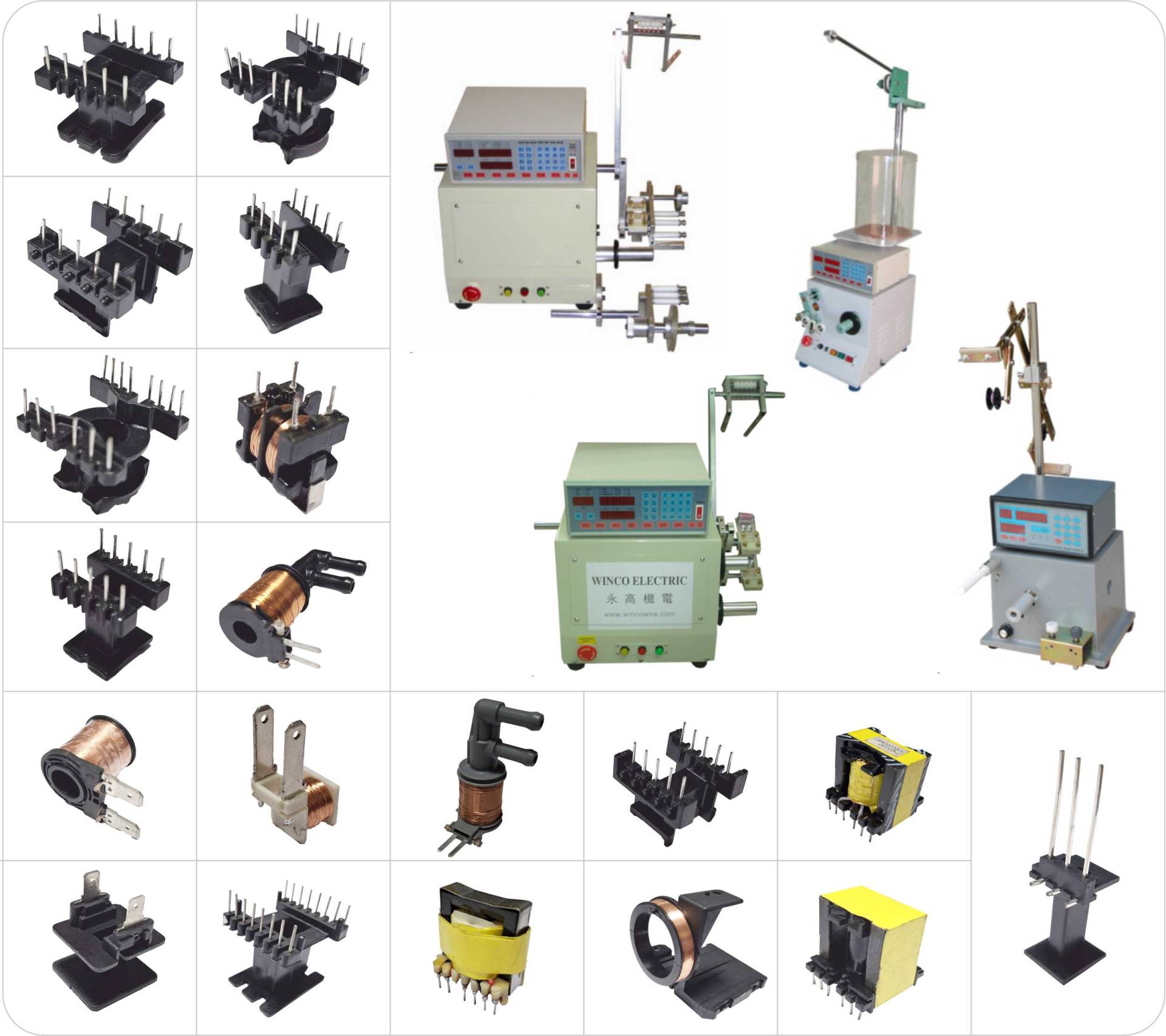

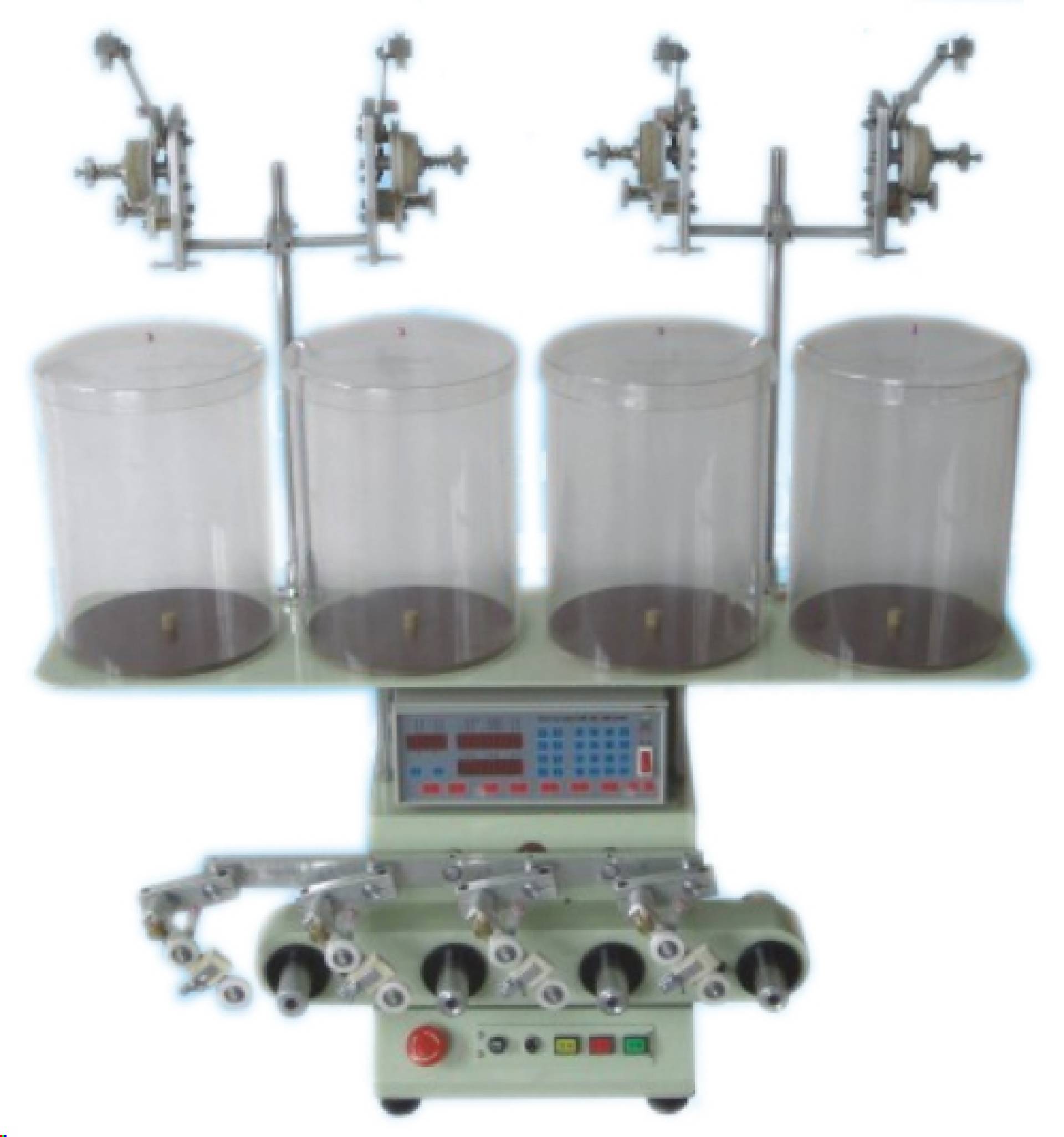

CNC Auto Winding Machines

PME-801/801F/801C/802/802F/804F

Suitable for Mini Transformer, Power Suppler Transformer, Relay, High Voltage Ignition Coil and exchangeable Power Supply Transformer manufacturing etc. Easy setting and high precision of spreading control

  • Specification
  • Product Videos
  • Product Accessories

Product Specifications


Model # PME-801 PME-801F PME-801C PME-802 PME-802F PME-804F
No. of Spindles 1 1 1 2 2 4
Wire Dia (mm) 0.05~1.0 0.05~1.0 1.0~3.0 0.02~0.6 0.02~0.4 0.02~0.2
Spindle Speed (rpm) 3000 3000 1400 3000 6000 6000
Frame Max. 100mm 100mm 130mm 130mm 100mm 100mm
Wire Pitch 0.01~9.99mm 0.01~9.99mm 0.01~9.99mm 0.01~9.99mm 0.01~9.99mm 0.01~9.99mm
Control Mode Micro Computer Control Micro Computer Control Micro Computer Control Micro Computer Control Micro Computer Control Micro Computer Control
Memory Capacity 0~999 Inputs / 0~999 0~999 Inputs / 0~999 0~999 Inputs / 0~999 0~999 Inputs / 0~999 0~999 Inputs / 0~999 0~999 Inputs / 0~999
Traverse Width 1mm~100mm setting unit by 0.01mm / 0.01mm 1mm~100mm setting unit by 0.01mm / 0.01mm 1mm~100mm setting unit by 0.01mm / 0.01mm 1mm~100mm setting unit by 0.01mm / 0.01mm 1mm~100mm setting unit by 0.01mm / 0.01mm 1mm~100mm setting unit by 0.01mm / 0.01mm
Main Motor AC or DC Motor (No Brush) AC or DC Motor (No Brush) AC or DC Motor (No Brush) AC or DC Motor (No Brush) AC or DC Motor (No Brush) AC or DC Motor (No Brush)
Traverse Motor Stepping Motor : Step Angle 0.9o Stepping Motor : Step Angle 0.9o Stepping Motor : Step Angle 0.9o Stepping Motor : Step Angle 0.9o Stepping Motor : Step Angle 0.9o Stepping Motor : Step Angle 0.9o
Electric Source AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz
Dimension (cm) L x W x H 40 x 60 x 45 66 x 60 x 110 66 x 75 x 50 40 x 60 x 45 66 x 60 x 110 66 x 102 x 110
Unit Weight 32 kg 30 kg 15 kg 34 kg 34 kg 68 kg
Optional Device Tension Meter, Reel Cover, Tail Support Tension Meter, Reel Cover, Tail Support Tension Meter, Reel Cover, Tail Support Tension Meter, Reel Cover, Tail Support Tension Meter, Reel Cover, Tail Support Tension Meter, Reel Cover, Tail Support
