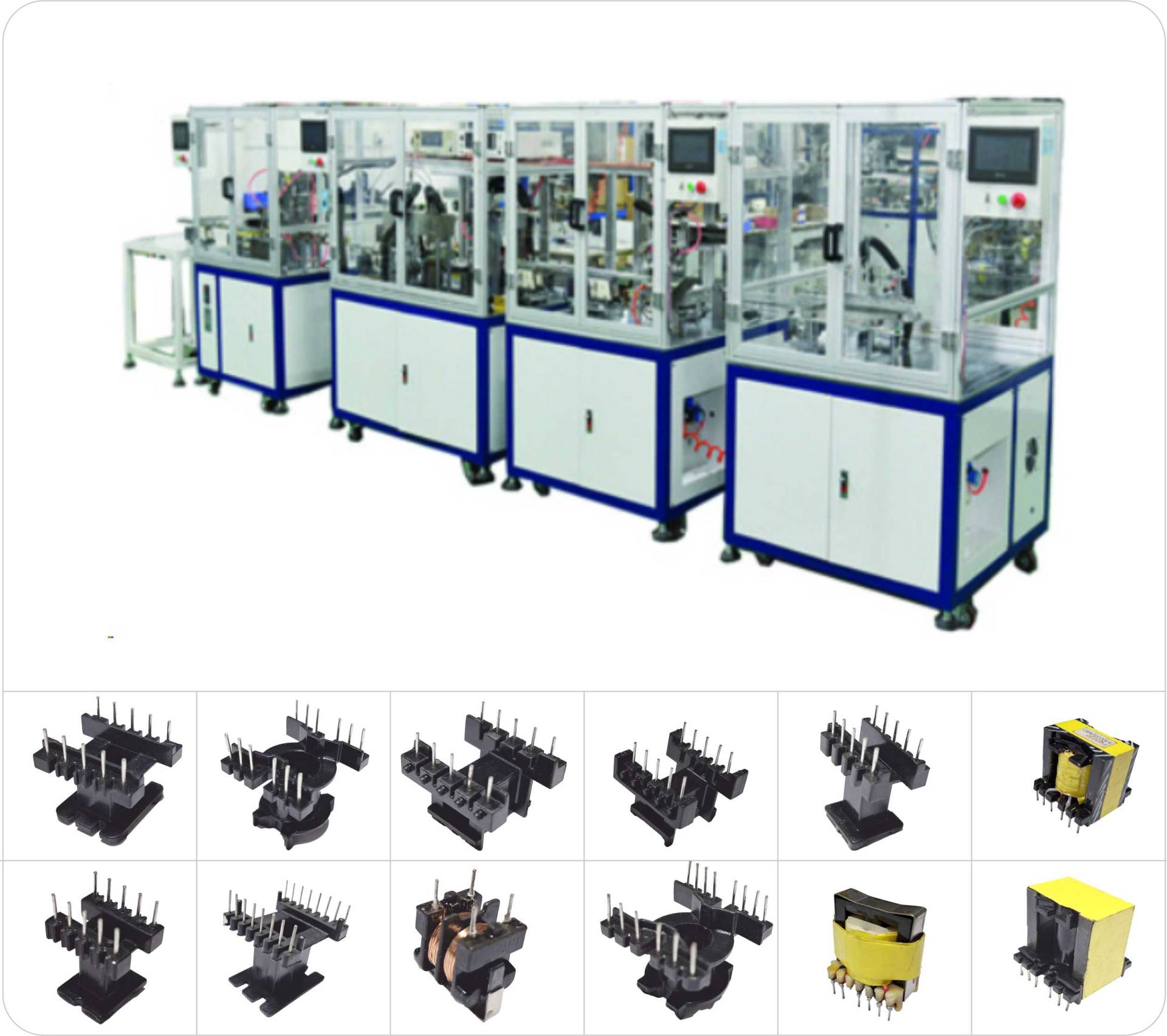

Fully Auto Transformer Core Taping & Testing Line

PME-1018

* Suitable for low or high/ vertical and horizontal transformer test
* Manual load to conveyor, auto feeding Auto testing NG part auto unloading and PASS part auto sort to tray or conveyor deliver to the next production process.
* Sensor auto-detects material on the track when loading core/coil
* Can be connected to operation & production lines.
* Featuring at high productivity, stability and efficiency.
* Optional test paramaters: Surge test, Hipot test, resistance test, Inductance test, leakage test etc

  • Specification
  • Product Videos
  • Product Accessories

Product Specifications


Model # PME-1018
Operation Control Touch Panel Interface
Control PLC & Servo Motor
Air Pressure 3 kg/cm2
Electric Source AC 220V 50/60Hz 500W
Unit Dimension 1000(L) x 500(W) x 1100(H) mm
Unit Weight 300 kg
