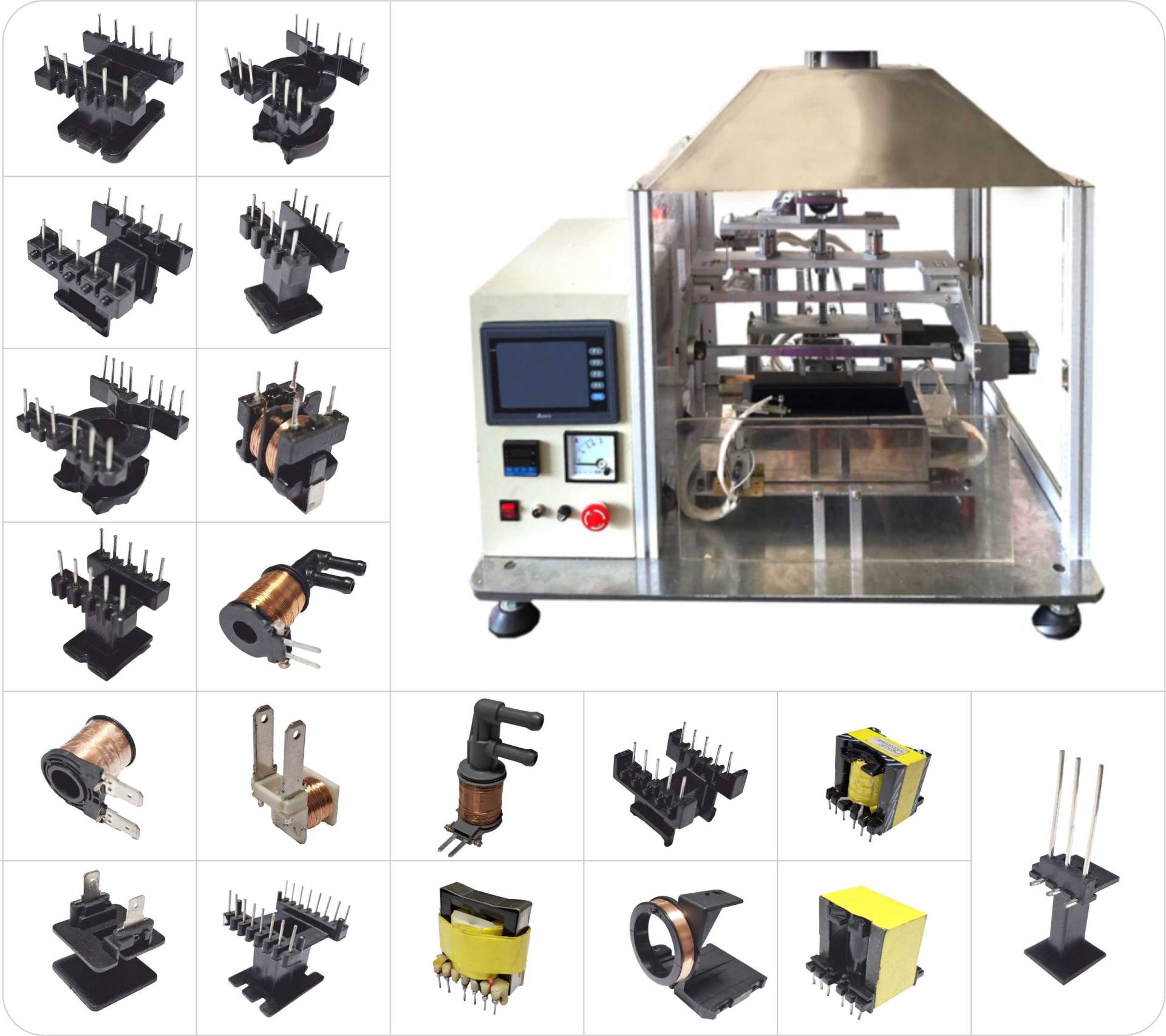

PLC Auto DIP Soldering Machine

PME-02R PLC

* Selectable for an angle soldering process

* Adopted with PLC controller system, it can store up to 99 sets of memory, each memory can be set up to10 parameters memory harmony with stepping motor.

* One program can position 3 steps function, each step can have a setting for -(a) Angle setting (b) Dropping height setting (c) Pre-heat time setting

* For horizontal coil, angle one side position for solder, then angle other side for solder, then parallel, finally dragging soldering

* Equipped with titanium solder pot, temperature control, reduce tin oxidation And heater pipe is a single unit and can be easily exchange for maintenance

Specification
Product Videos
Product Accessories

Product Specifications

Model #	PME-02R_PLC
Cycle Time	10~20pcs/12 sec
Operation	Control Touch Panel Interface
Control	PLC
Traverse	Max. 76mm (Stepping Motor)
Air Pressure	5 kg/cm2
Electric Source	AC220V 50/60Hz ; 2000W
Inner Tank	300(L) x 100(W) x 60(H) mm
Unit Dimension	550(L) x 600(W) x 530(H) mm
Unit Weight	60 kg
Optional Device	Nozzle, Solder cup or Dragging Mechanism
