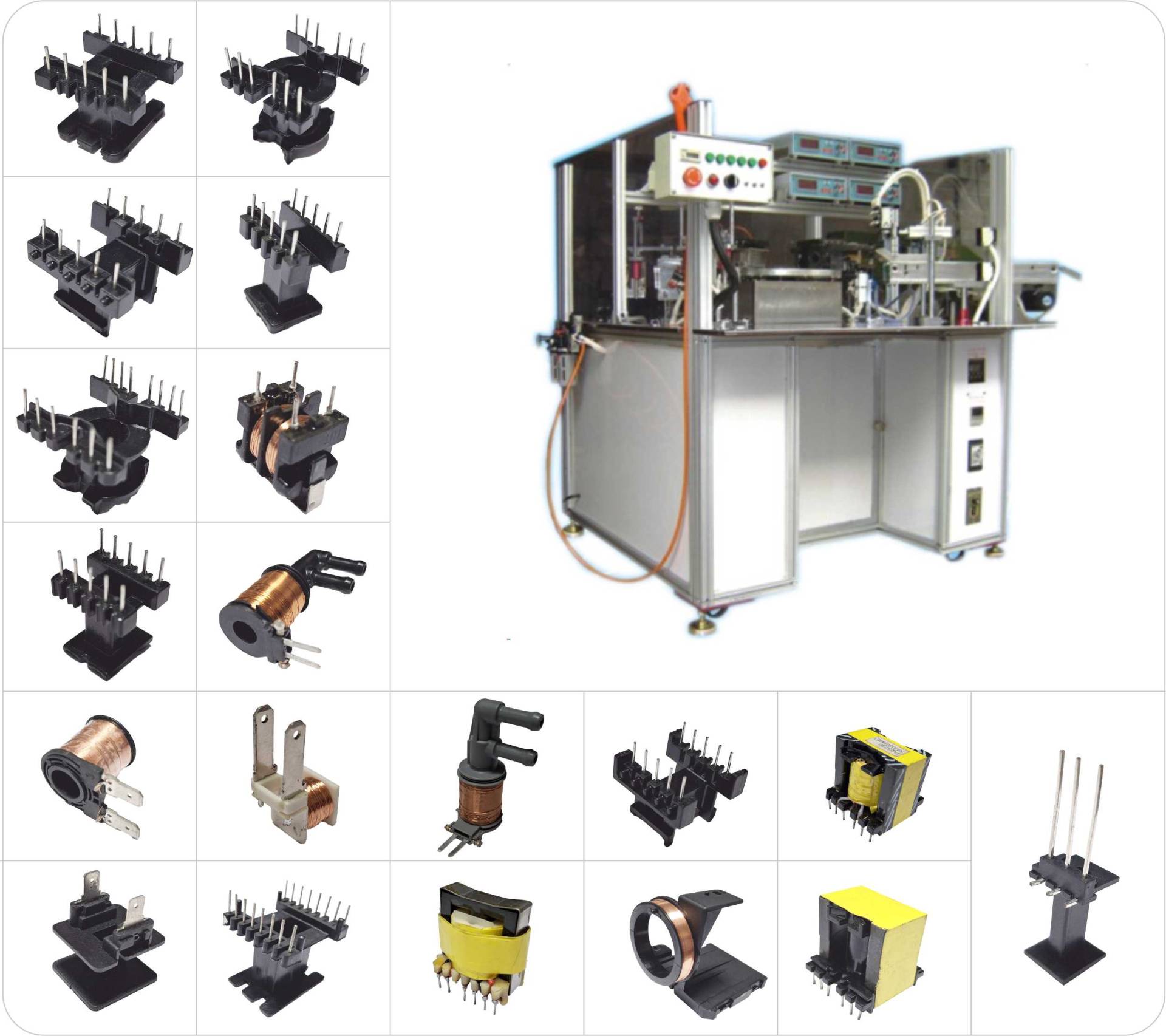

Six Station Auto DIP Soldering Machine

WCE-06

* Applicable for Vertical or Horizontal Coil or Relay component soldering work
* Auto dross clean, adjustable for soldering height.
* Programmable setting for daily or week production schedule.
* Heater pipe is a single unit and can be easy exchange & maintenance.
* Two times solder per cycle, timer setting for dipping (Solder cup raise up)
* Adopted with titanium solder pot, sustains high temperature, max 600°C.
* Addable testing or pressing function for DC fan coil or FBT low V coil
* For relay, pin bending and 90" bend back can be added.

  • Specification
  • Product Videos
  • Product Accessories

Product Specifications


Model # PME-06
Cycle Time 1 pc/1.5 Sec
Air Pressure 5 kg/cm2
Electric Source AC220V 50/60Hz 2600W
Inner Tank 155(L) x 110(W) x 65(H) mm
Unit Dimension 1200(L) x 120(W) x 1400(H) mm
Unit Weight 100 kg
Optional Device Auto Tin Feeder
