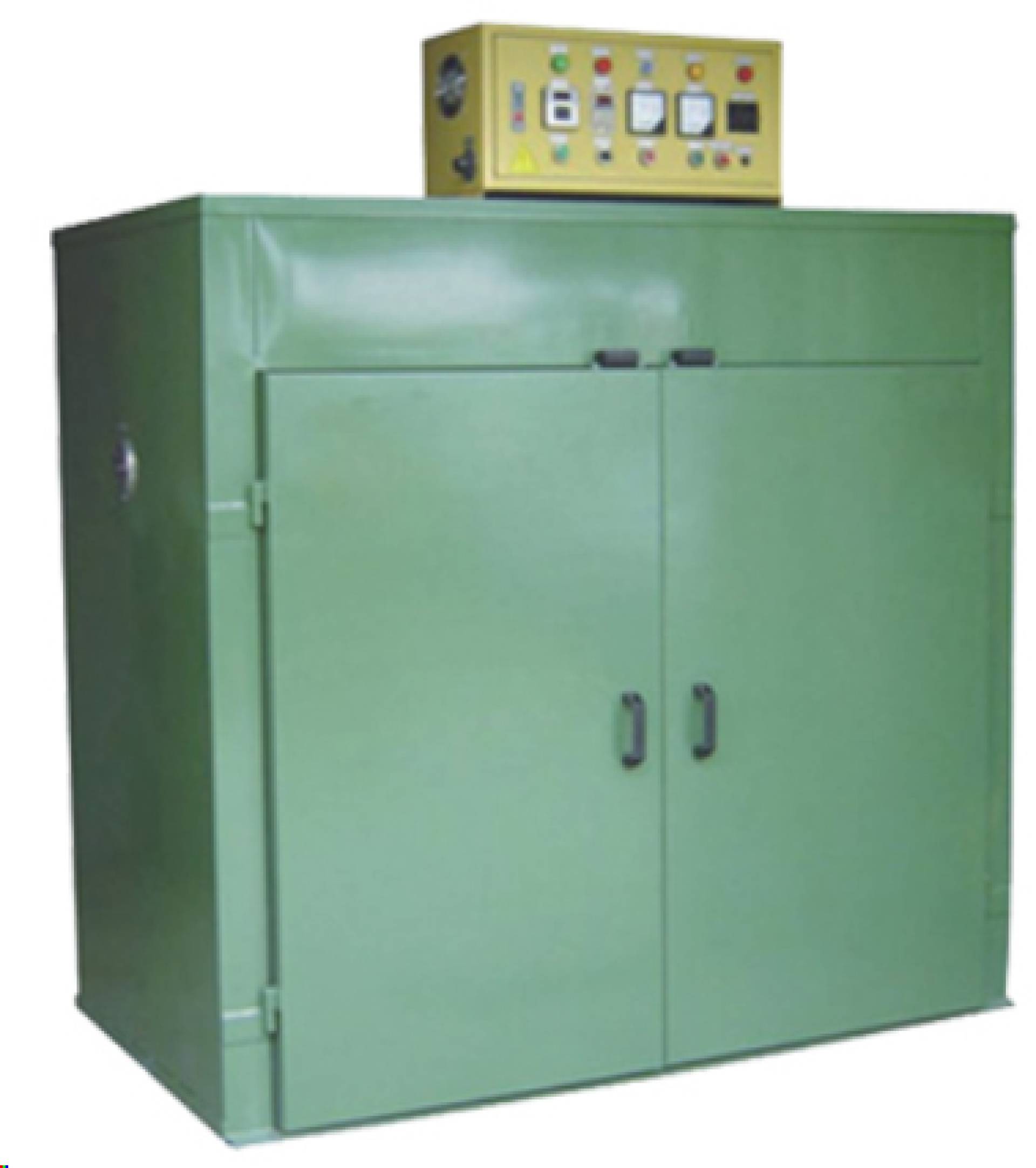

Twin Door Type Auto Temperature Heat Oven

PME-205B

* Application: Transformer, choke, lighting ballast, toys, etc.
* Adopted with a horizontal air flowing ventilation system, fast heating up and keeping the inner room at a constant temperature, tolerance allowed only +/- 5°C to +/-7°C
* Excellent heat retaining performance, good quality of imported asbestos in use.
* Four protective systems equipped to secure the greatest safety.
* Easy to operate and monitor.

  • Specification
  • Product Videos
  • Product Accessories

Product Specifications


Model # PME-205B
Temp Range 30oC~200oC
Temp Different +/- 5oC ~ +/- 7oC
Air Pressure 6 kg/cm2
Electric Source AC380V 50/60Hz 9~12KW
Inner Dimension 1500(L) x 800(W) x 1300(H) mm
Unit Dimension 1750(L) x 950(W) x 1960(H) mm
Unit Weight 300 kg
Optional Device Trolley (Allow order as requirement)
